Diesel Generator

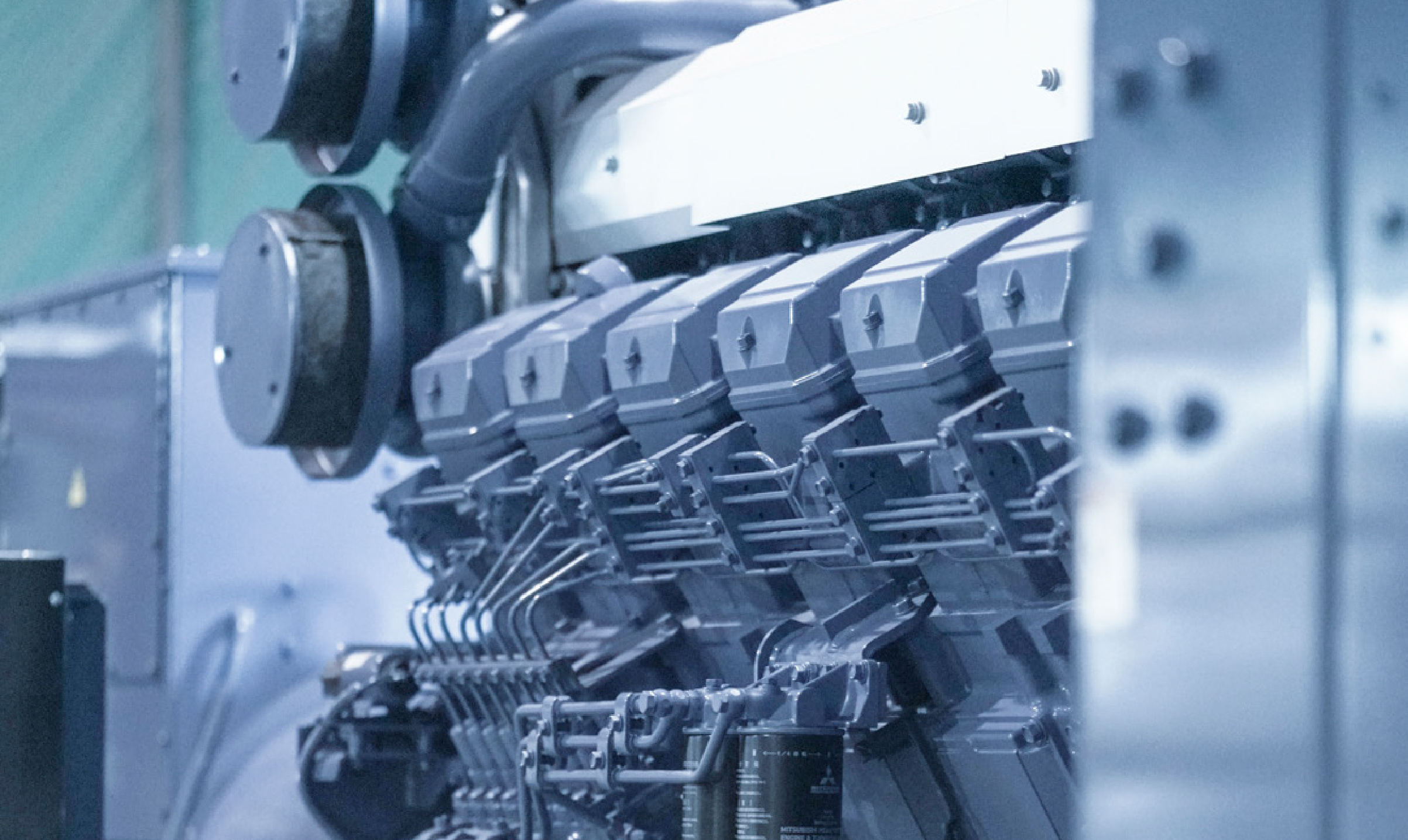

Mitsubishi Diesel Engine

The Mitsubishi Diesel Engine is equipped with a range of standard features that exemplify its exceptional quality and performance. At its core, the engine boasts a robust construction and advanced engineering, ensuring durability and reliability in even the most demanding applications.

With precision fuel injection systems, the engine delivers optimal fuel efficiency and reduced emissions, contributing to a greener and more sustainable operation. Additionally, integrated cooling systems effectively manage the engine's temperature, ensuring optimal performance in various operating conditions.

MGS Series

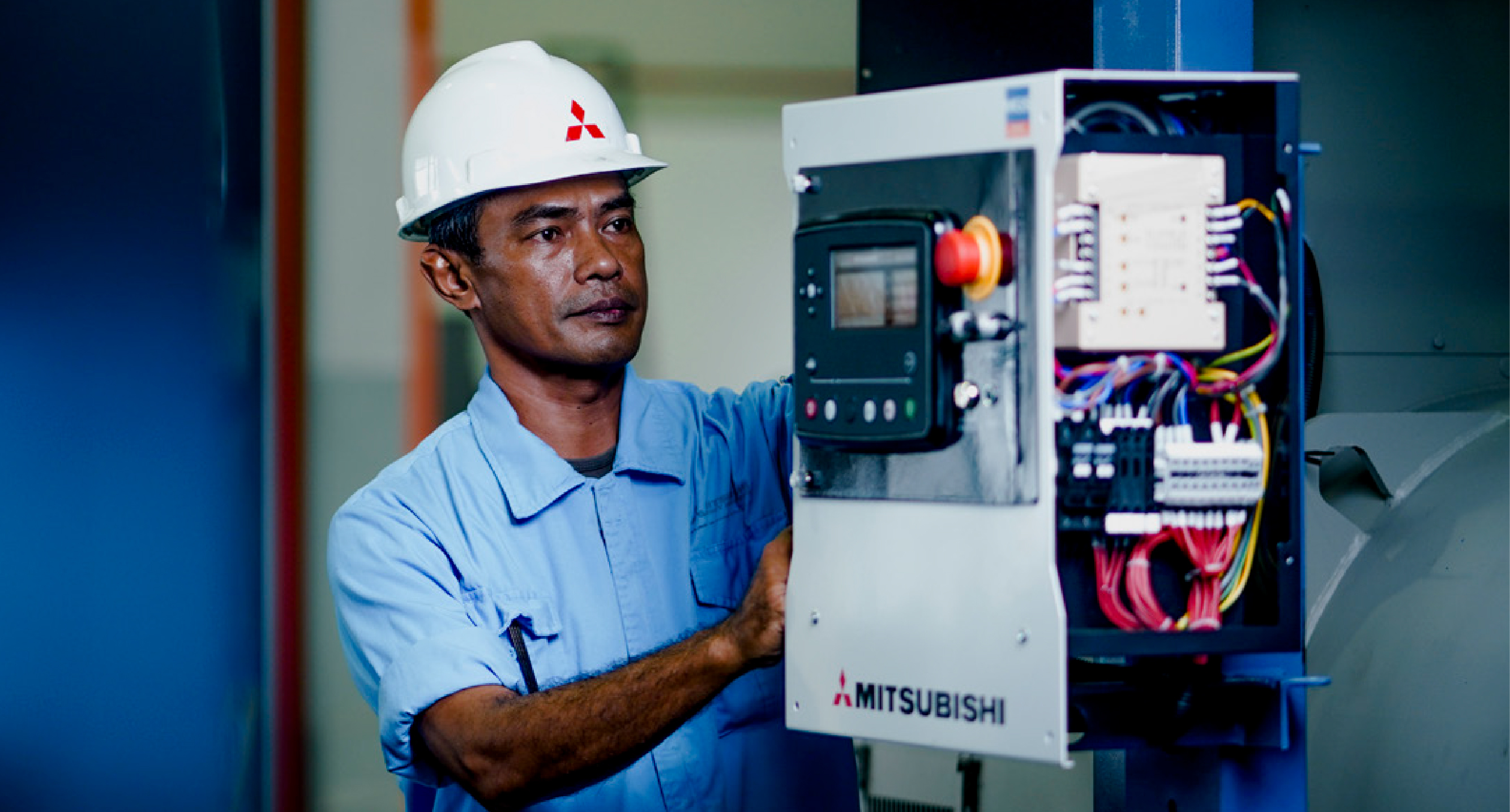

Control Panel

The Mitsubishi Generator Series standard 7310 features a programmable microprocessor control that serves as an automatic start/stop panel, complete with generator breaker control. This effectively indicates operational status and detects any fault conditions, while the LCD display and LEDs on the front panel promptly indicate engine failure and automatically initiate shutdown.

The electrical design meets the standards of BS EN 60950 Low Voltage Directive, BS EN 61006-2, and 61006-4 EMC Directive, and optional interfaces provide real-time diagnostic capabilities.


ADVANCED SOLUTION IN POWER GENERATION

"Full-sized" safety and automatic functions in the series of digital control systems

Easy human interface in the sophisticated control system makes for an operator-friendly genset.


MGS series CONTROL PANEL

MGS standard 7310 programmable microprocessor control - automatic start/stop panel, generator breaker control, indicating the operational status and fault conditions; automatically shutting down the engine and indicating the engine failure by means of LCD display and LEDs on the front panel. Electrical design in accordance with BS EN 60950 Low Voltage Directive, BS EN 61006-2 and 61006-4 EMC Directive. The optional interface can provide real time diagnostic facilities.

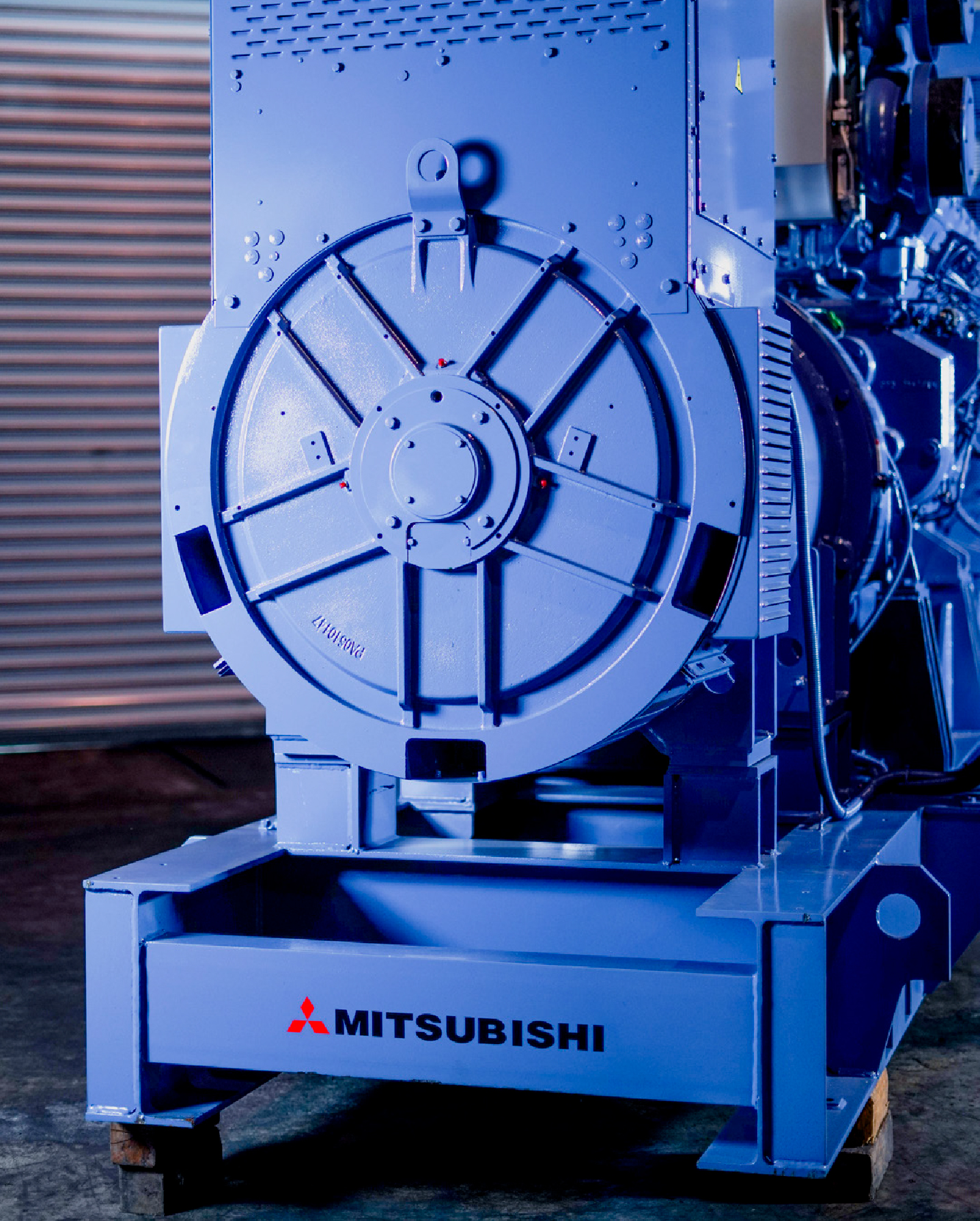

Features of MGS-C
For High Reliable, Stable Power Supply Source

  • • Extra wide range 12-wire re-connectable terminal box:
  • up to MG-HC6K      1,110 kVA at 220 V and 50 Hz
                                       1,150 kW at 240 V and 60 Hz
  • • Digital Diesel Generator Control Lineup
    Standards: MGS 7310 control panel for local/remote control operation
    Option: Diesel generator control system DGICS-MIL
  • • Applied worldwide distribution systems design, without any modifications
  • • Permanent Magnetic Generator (PMG) excitation system

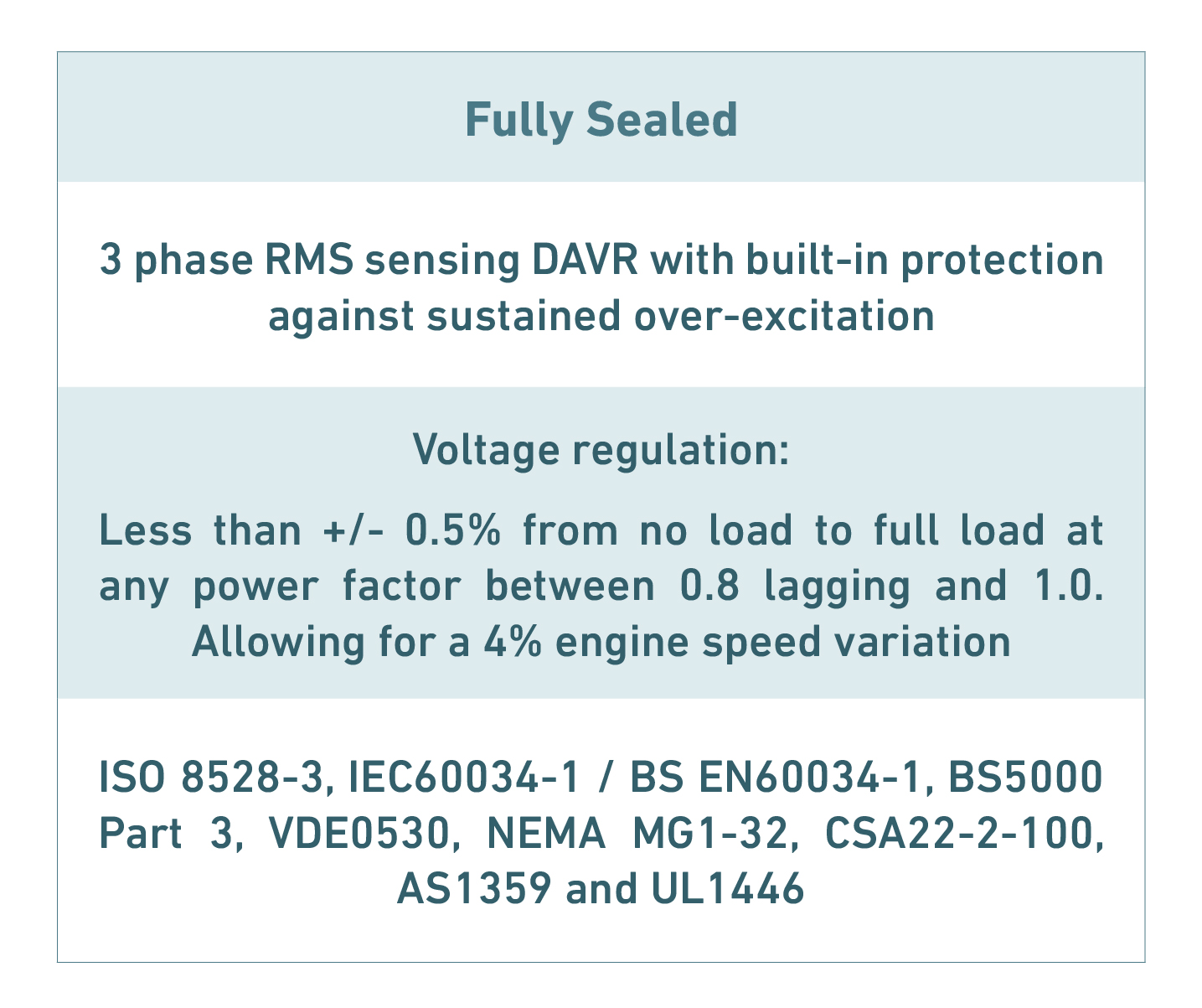

  • • Sealed type RMS sensing type AVR for highly reliable operation
  • • 2/3 pitch and class H insulation system with VPI methods windings
  • • Built-in current transformer for measurement, control and protection for both 400 V and 200 V class applications
  • • Class H Insulation Materials with Class F Temperature Rise Applied
MGS-C Gen set catalogue (PDF. open new window)

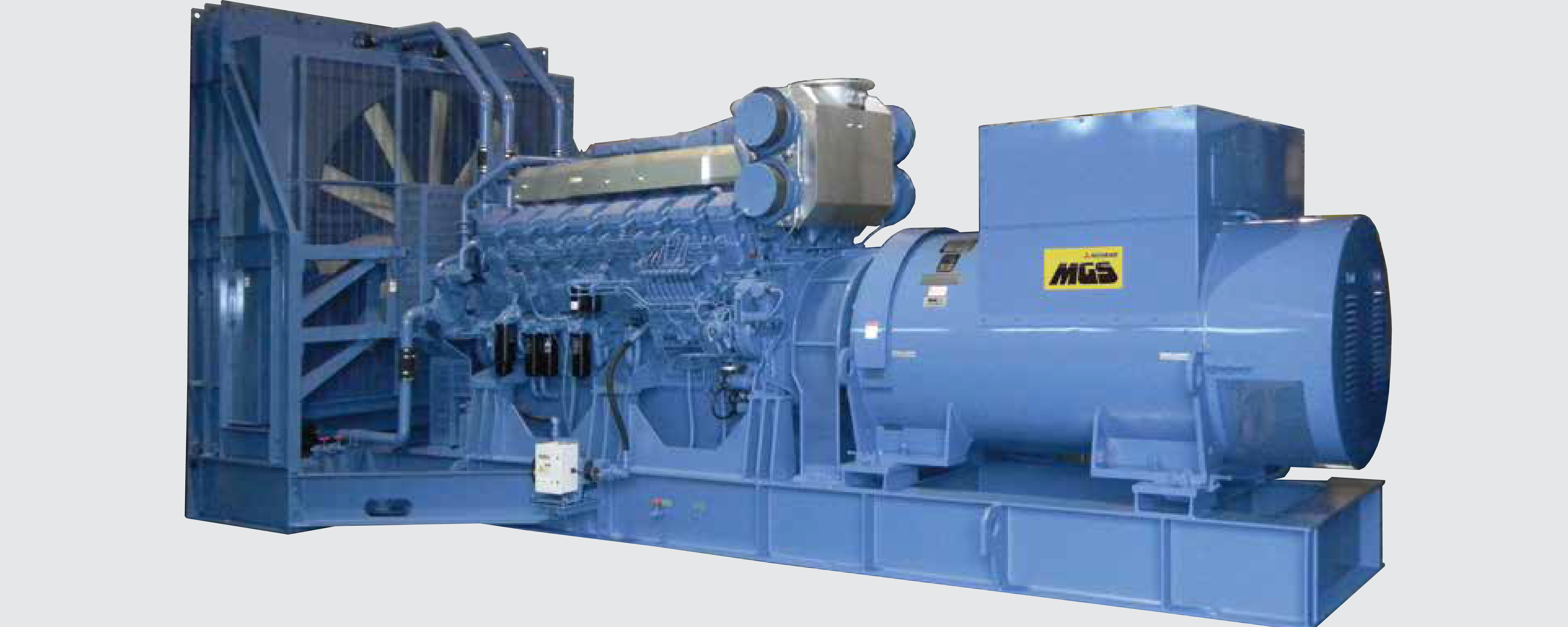

Features of MGS-HV

  • •VPI(Vacuum-Pressure Infused) with Epoxy resin.
  • •IEC Class H Insulation for 3.3 kV and 4.16 kV generator
  • •IEC Class F Insulation for 6.6 kV, 10 kV, 11 kV and 13.8 kV generator
  • •Built-in AVR for 3.3 kV and 4.16 kV generator
  • •Loose supply AVR for 6.6 kV, 10 kV, 11 kV and 13.8 kV generator
  • •Degree of Protection: IP-22 for Generator Enclosure
  • •Degree of Protection: IP-44 for Terminal Box
  • •PMG(Permanent Magnet Generator(Exciter))
  • •6 Numbers Pt 100 ohms RTD for Stator
  • •1 or 2 Numbers Pt 100 ohms RTD for Bearing(s)
  • •Three-Phase sensing type AVR with V/Hz control
  • •Commercial Type Space Heater
  • •Form-Wound Stator and Salient pole Rotor
  • •40 deg. C and 1000 mASL IEC Standard conditions
MGS-HV Gen set catalogue(PDF. open new window)
