MITSUBISHI DIESEL ENGINES
Ranging in capacity from 0.5 to 56,400 horsepower, Mitsubishi brand diesel engines offer a series of versatile power generating systems. Mitsubishi Heavy Industries Engine & Turbocharger, Ltd. has continually introduced upgraded its engine products since the inception of thebusiness in 1917, and now the MITSUBISHI MGS genset provides a higher generating power rating and more advanced control systems than ever before, with proven reliability based on the continued research and development.

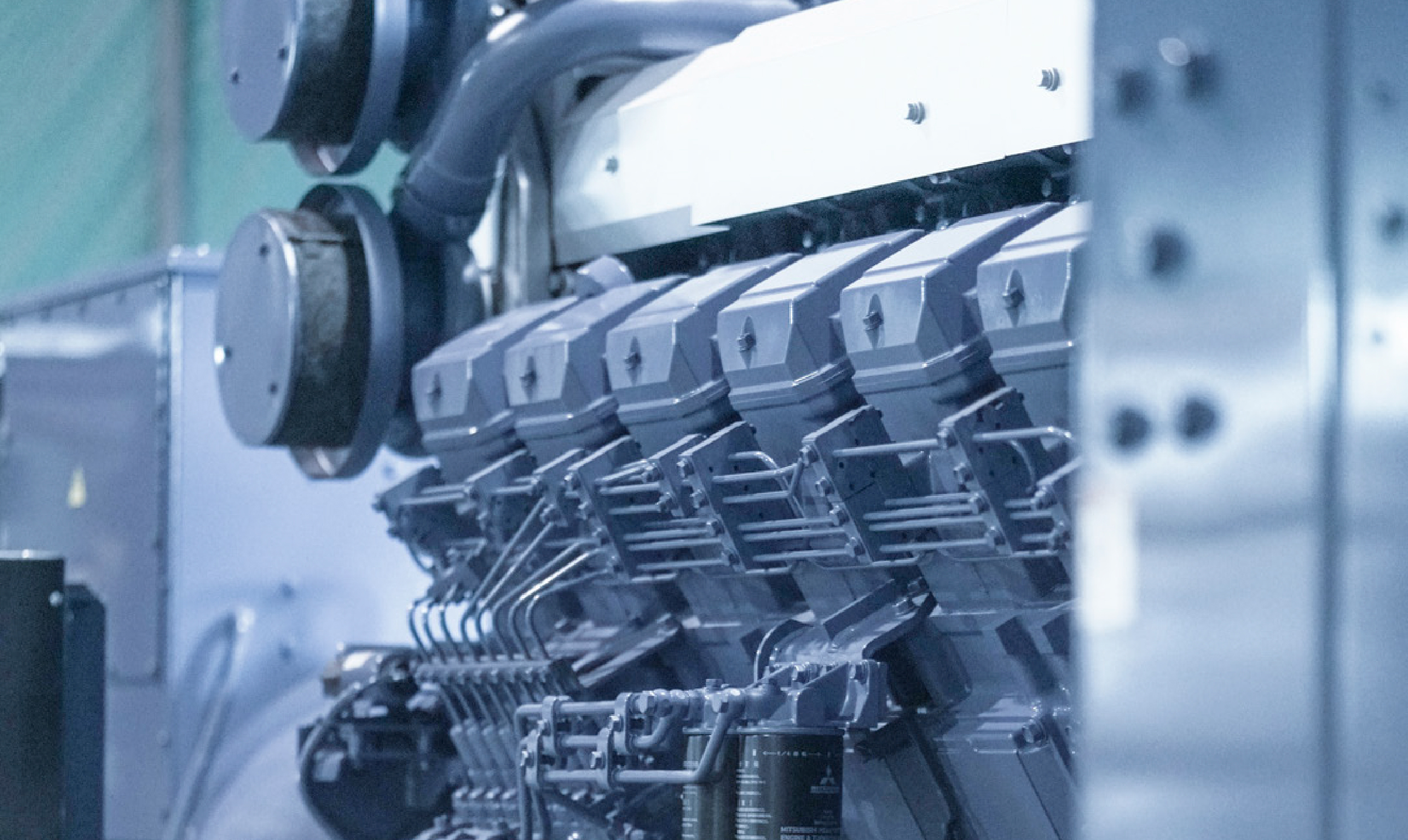

The best performance-matched engine system configured with Mitsubishi diesel engines and Mitsubishi turbochargers, which are engineered and manufactured in the same facility, is certain to result in high productivity and improved fuel efficiency. Every unit is inspected and tested before leaving the factory and the test report is sent with the genset. MITSUBISHI MGS - All Mitsubishi assembled, tested and supported.
DEPENDABILITY & DURABILITY IN POWER GENERATION
The best performance-matched engine and generator systems give world-class performance
Response and stability designed to exceed user expectations in a variety of applications

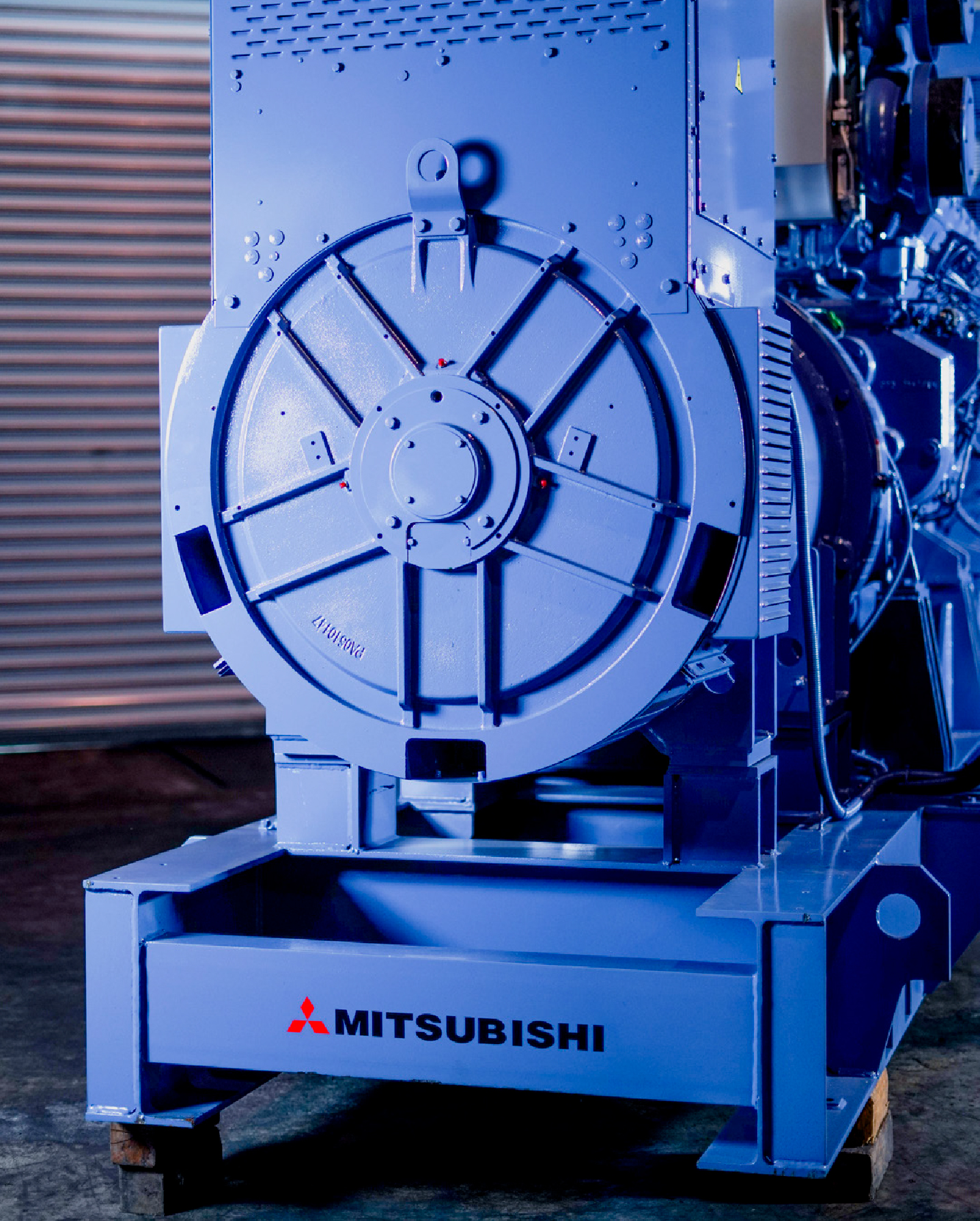

4 pole, screen protected, drip-proof IP23, self-exciting, self-regulating and brushless with fully connected damper windings, salient pole rotors, A.C. exciter and rotating rectifier unit. The insulation system is Class ’H’. All windings are coated in either a triple dip thermo-setting moisture, oil and acid resisting polyester varnish or vacuum pressure infused with a special polyester resin. Electrical design in accordance with BS5000 Part 3, VDE0530, UTE51100, NEMA MG1-32, CEMA, IEC34-1, CSA22.2 and AS1359.
6 and 12 wire*1 reconnectable windings provide a wide range of 3 phase voltage. The exciter field system remains at full strength, sustaining a high level of short circuit current at the ac generator output terminals by means of the excitation voltage via AVR powered by the independent winding, Permanent Magnet Generator (PMG) as a standard feature in the MGS genset, which is electrically isolated from the main alternator stator windings.
Turbo-filter is standard and paper element dry type air-cleaner is available as an option.

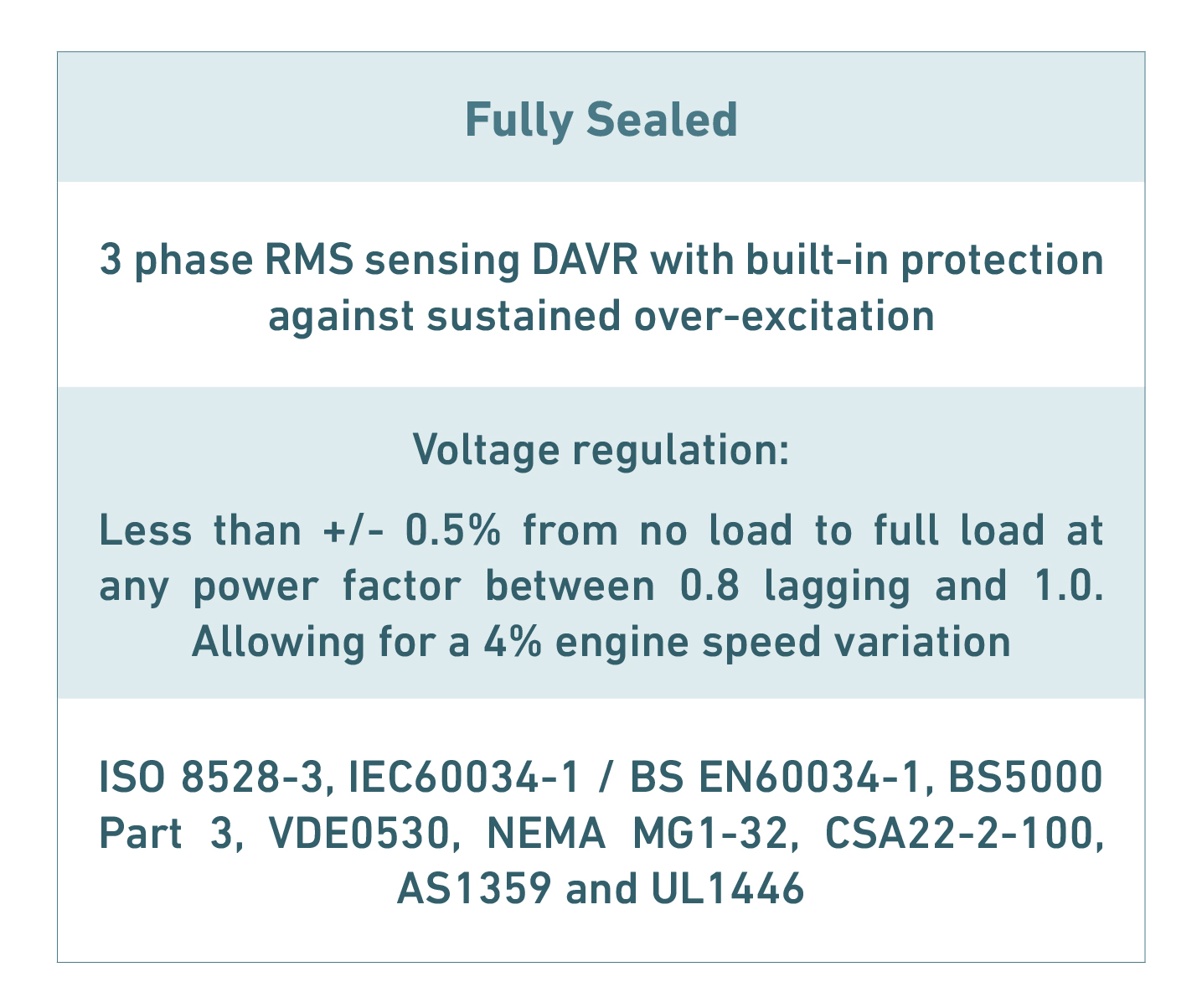

The fully sealed, three phase*2 RMS voltage sensing AVR maintains the voltage within the limits of +/-0.5%*3 from no load to full load including cold to hot variations at any power factor between 0.8 lagging and unity allowing for a 4% engine speed variation, suitable for applications with greatly unbalanced or high non-linear loads associated with UPS systems. The AVR has built-in protection against sustained over-excitation, caused by internal or external faults. This de-excites the generator after a minimum of five seconds. THF (as defined by BS4999 Part 40) is better than 2 % and a TIF (as defined by ASA C50.12) is better than 50. Radio interface: Suppression is in line with the provision of BS800 and VDE Class G and N.
(Note 1) 12 wire reconnectable windings are the features up to Code H6 models.
(Note 2/3) Up to Code K5 models have single phase voltage sensing and the voltage regulation within +/-1.0%, for 4% engine speed variation.
ADVANCED SOLUTION IN POWER GENERATION
"Full-sized" safety and automatic functions in the series of digital control systems
Easy human interface in the sophisticated control system makes for an operator-friendly genset.

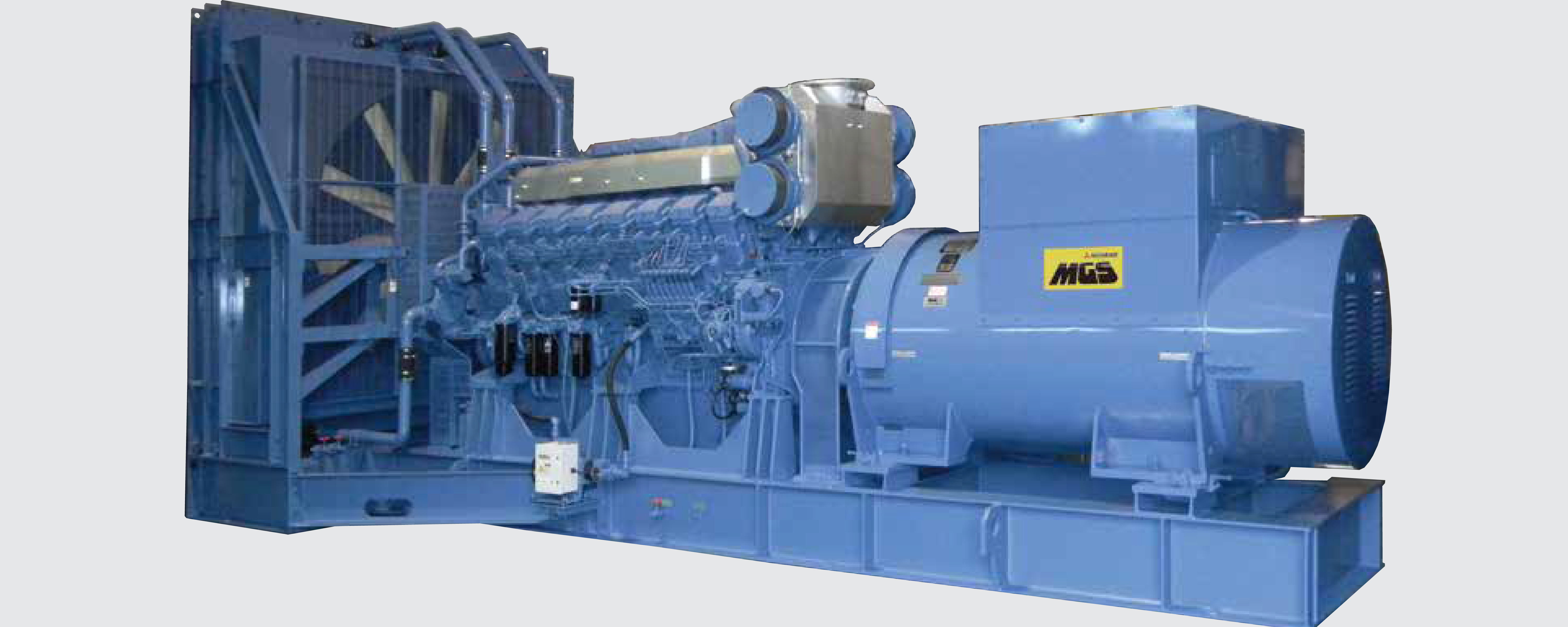

MGS series CONTROL PANEL

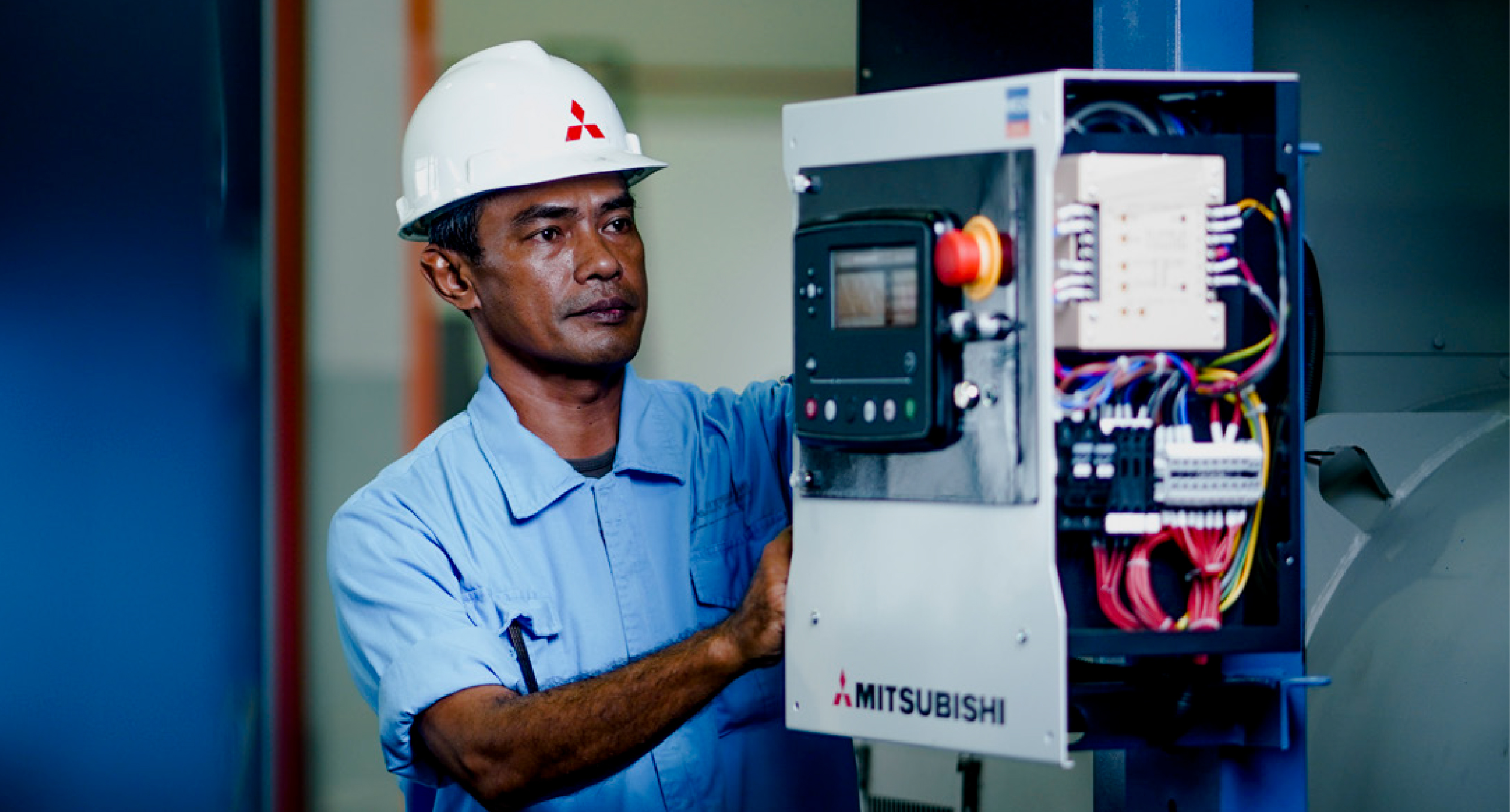

MGS standard 7310 programmable microprocessor control - automatic start/stop panel, generator breaker control, indicating the operational status and fault conditions; automatically shutting down the engine and indicating the engine failure by means of LCD display and LEDs on the front panel. Electrical design in accordance with BS EN 60950 Low Voltage Directive, BS EN 61006-2 and 61006-4 EMC Directive. The optional interface can provide real time diagnostic facilities.
Features of MGS-C
For High Reliable, Stable Power Supply Source
- • Extra wide range 12-wire re-connectable terminal box:
- up to MG-HC6K 1,110 kVA at 220 V and 50 Hz
1,150 kW at 240 V and 60 Hz
Digital Diesel Generator Control Lineup
Standards: MGS 7310 control panel for local/remote control operation
Option: Diesel generator control system DGICS-MIL
- • Applied worldwide distribution systems design, without any modifications
- • Permanent Magnetic Generator (PMG) excitation system
- • Sealed type RMS sensing type AVR for highly reliable operation
- • 2/3 pitch and class H insulation system with VPI methods windings
- • Built-in current transformer for measurement, control and protection for both 400 V and 200 V class applications
- • Class H Insulation Materials with Class F Temperature Rise Applied
Features of MGS-HV
- •VPI(Vacuum-Pressure Infused) with Epoxy resin.
- •IEC Class H Insulation for 3.3 kV and 4.16 kV generator
- •IEC Class F Insulation for 6.6 kV, 10 kV, 11 kV and 13.8 kV generator
- •Built-in AVR for 3.3 kV and 4.16 kV generator
- •Loose supply AVR for 6.6 kV, 10 kV, 11 kV and 13.8 kV generator
- •Degree of Protection: IP-22 for Generator Enclosure
- •Degree of Protection: IP-44 for Terminal Box
- •PMG(Permanent Magnet Generator(Exciter))
- •6 Numbers Pt 100 ohms RTD for Stator
- •1 or 2 Numbers Pt 100 ohms RTD for Bearing(s)
- •Three-Phase sensing type AVR with V/Hz control
- •Commercial Type Space Heater
- •Form-Wound Stator and Salient pole Rotor
- •40 deg. C and 1000 mASL IEC Standard conditions
